Designing Backyards

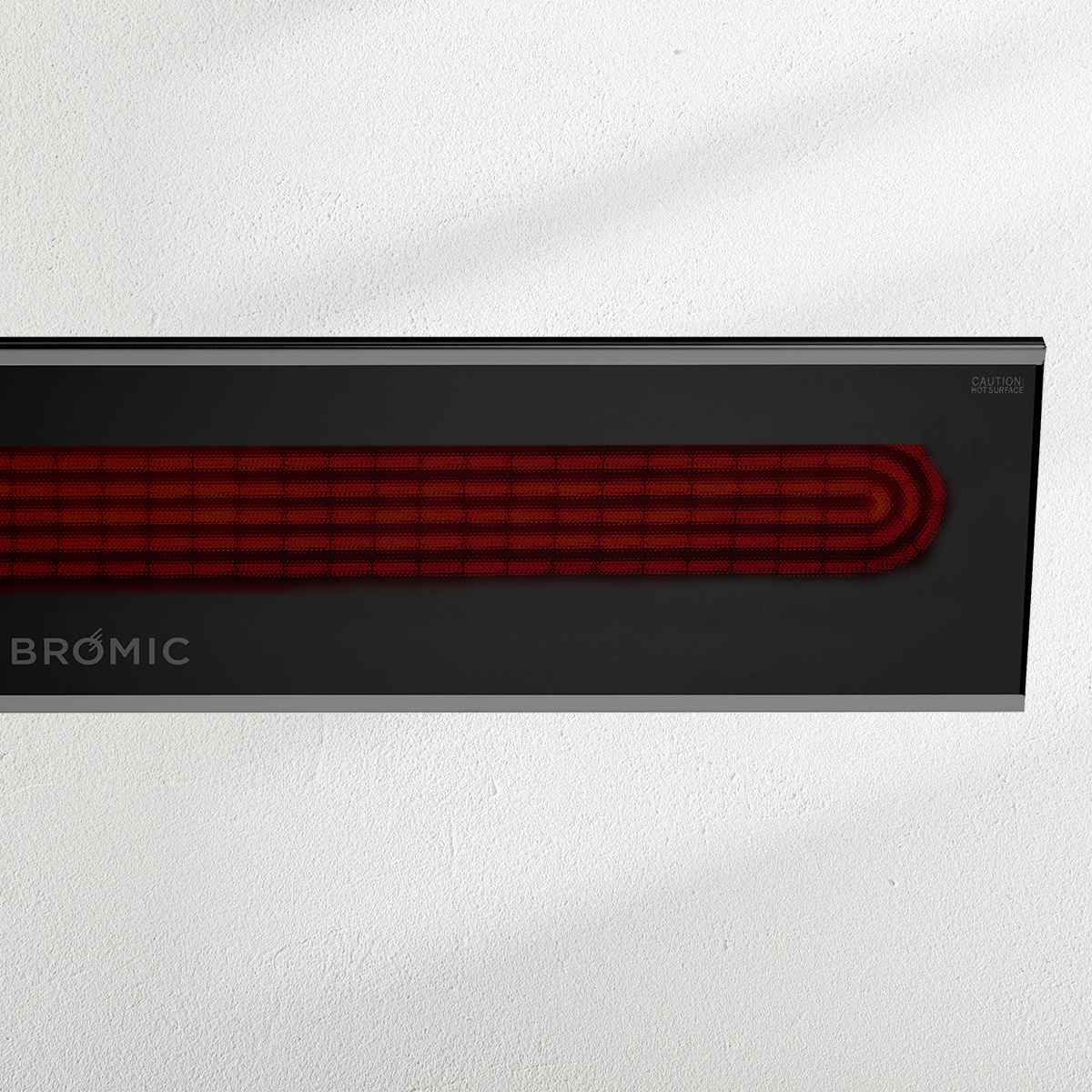

Bromic Platinum Smart-Heat Marine Grade 53-Inch 4500W Dual Element Electric Heater
Bromic Platinum Smart-Heat Marine Grade 53-Inch 4500W Dual Element Electric Heater
Regular price
$5,786.00 USD
Regular price
Sale price
$5,786.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Need help choosing? Call us
Reach out to usShare
Description

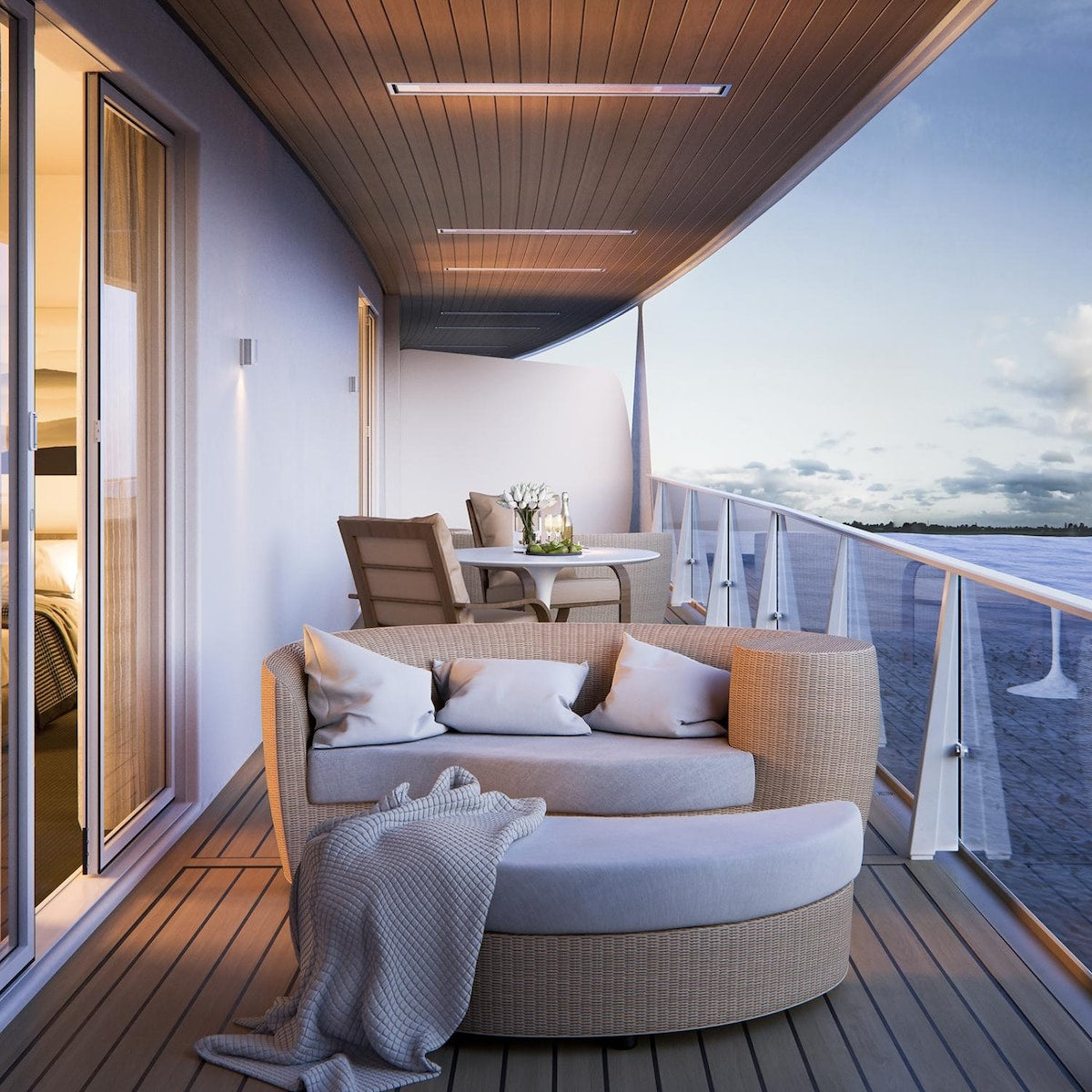

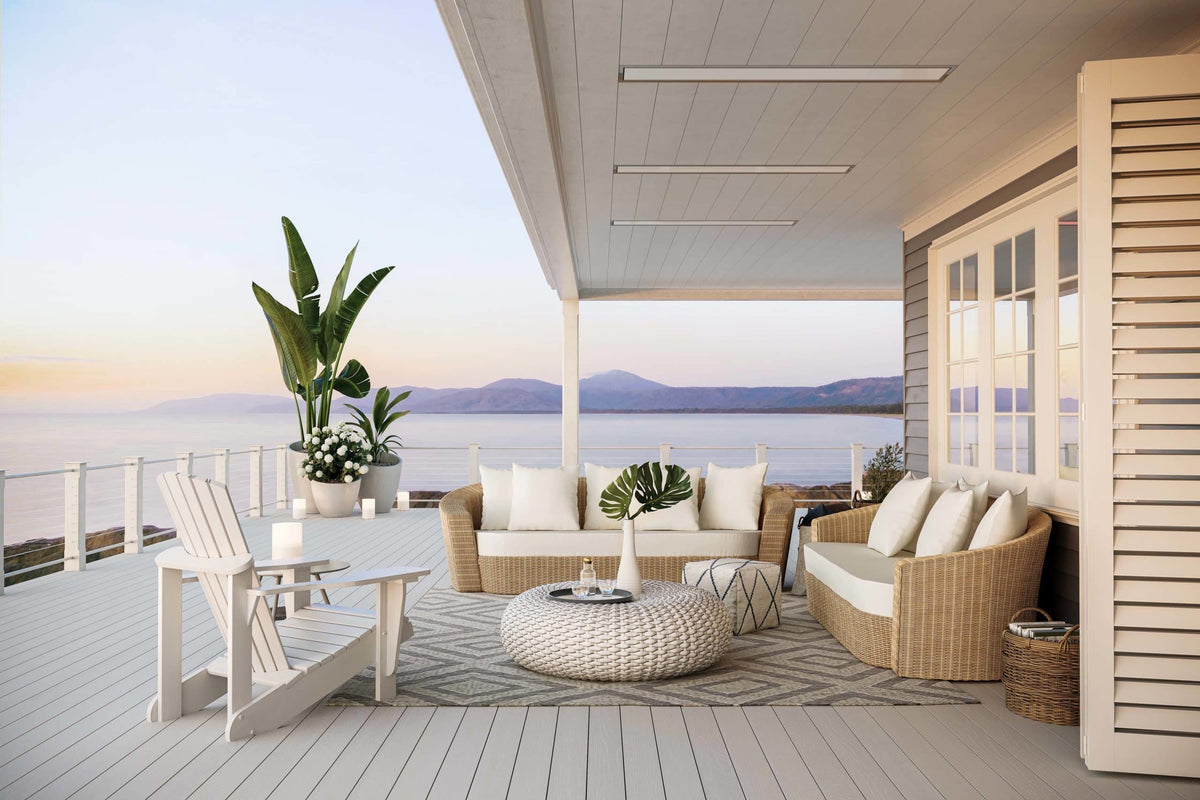

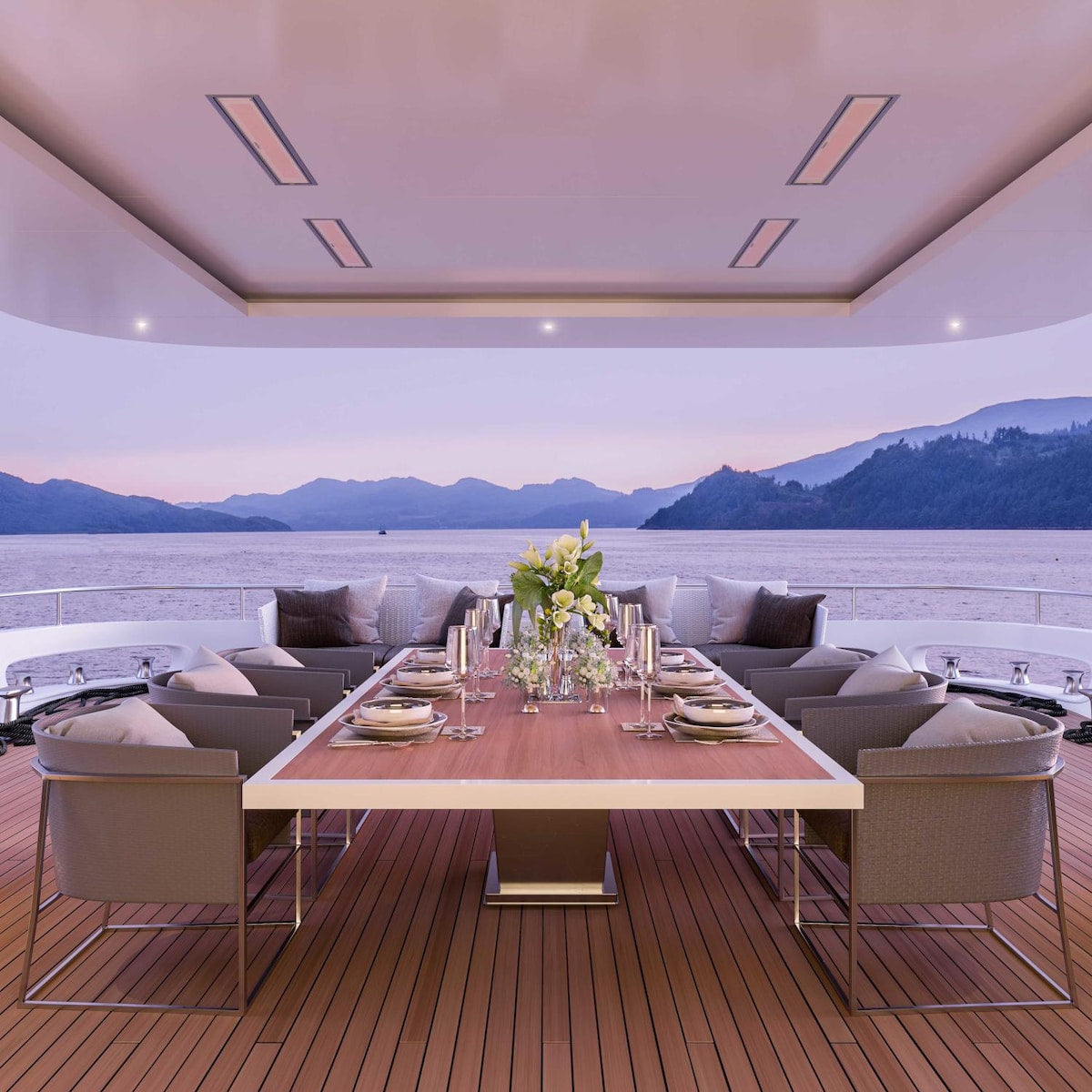

The Bromic Platinum Smart-Heat Marine Grade 53-Inch 4500W Dual Element Electric Heater is the most powerful model in Bromic's marine-grade electric line, built for coastal homes, marinas, yachts and waterfront venues where salt air corrodes ordinary heaters. It delivers 4,500 watts of radiant heat across up to 143 square feet and is available in black or white, in 240V and 208V.
True Marine-Grade Construction
The fully enclosed body is built from AISI 316 marine-grade stainless steel with sealed thin-film elements and an IPX5 water-resistance rating. The Platinum Electric Marine was the first outdoor heater series approved by Lloyd's Register for marine applications.
The fully enclosed body is built from AISI 316 marine-grade stainless steel with sealed thin-film elements and an IPX5 water-resistance rating. The Platinum Electric Marine was the first outdoor heater series approved by Lloyd's Register for marine applications.
Even, Low-Glare Radiant Heat
Dual heating elements sit behind a tinted glass-ceramic fascia that spreads heat evenly while minimizing light emission, and the easy-to-clean ceramic-glass surface keeps maintenance simple. Electric operation means no flame, no fumes and no ventilation requirement.
Dual heating elements sit behind a tinted glass-ceramic fascia that spreads heat evenly while minimizing light emission, and the easy-to-clean ceramic-glass surface keeps maintenance simple. Electric operation means no flame, no fumes and no ventilation requirement.
Installation and Controls
Each heater ships with an adjustable mounting bracket and an 8-inch stainless steel pole for wall or ceiling mounting. For a flush finish, add a Bromic Marine Grade Ceiling Recess Kit for 4500W. Minimum floor clearance is 72 inches for wall mounting and 96 inches for ceiling mounting. Controls are sold separately: Bromic Affinity Smart-Heat On/Off or Dimmer Controllers, or a Manual Wall Switch. Installation must be completed by a licensed electrician.
Each heater ships with an adjustable mounting bracket and an 8-inch stainless steel pole for wall or ceiling mounting. For a flush finish, add a Bromic Marine Grade Ceiling Recess Kit for 4500W. Minimum floor clearance is 72 inches for wall mounting and 96 inches for ceiling mounting. Controls are sold separately: Bromic Affinity Smart-Heat On/Off or Dimmer Controllers, or a Manual Wall Switch. Installation must be completed by a licensed electrician.
Features
- 4,500W of radiant heat for areas up to 143 square feet
- Dual heating elements
- AISI 316 marine-grade stainless steel, fully enclosed body
- IPX5 water-resistance rating with sealed thin-film elements
- First outdoor heater series approved by Lloyd's Register for marine use
- Tinted glass-ceramic fascia with minimal light emission
- Adjustable mounting bracket and 8-inch stainless steel pole included

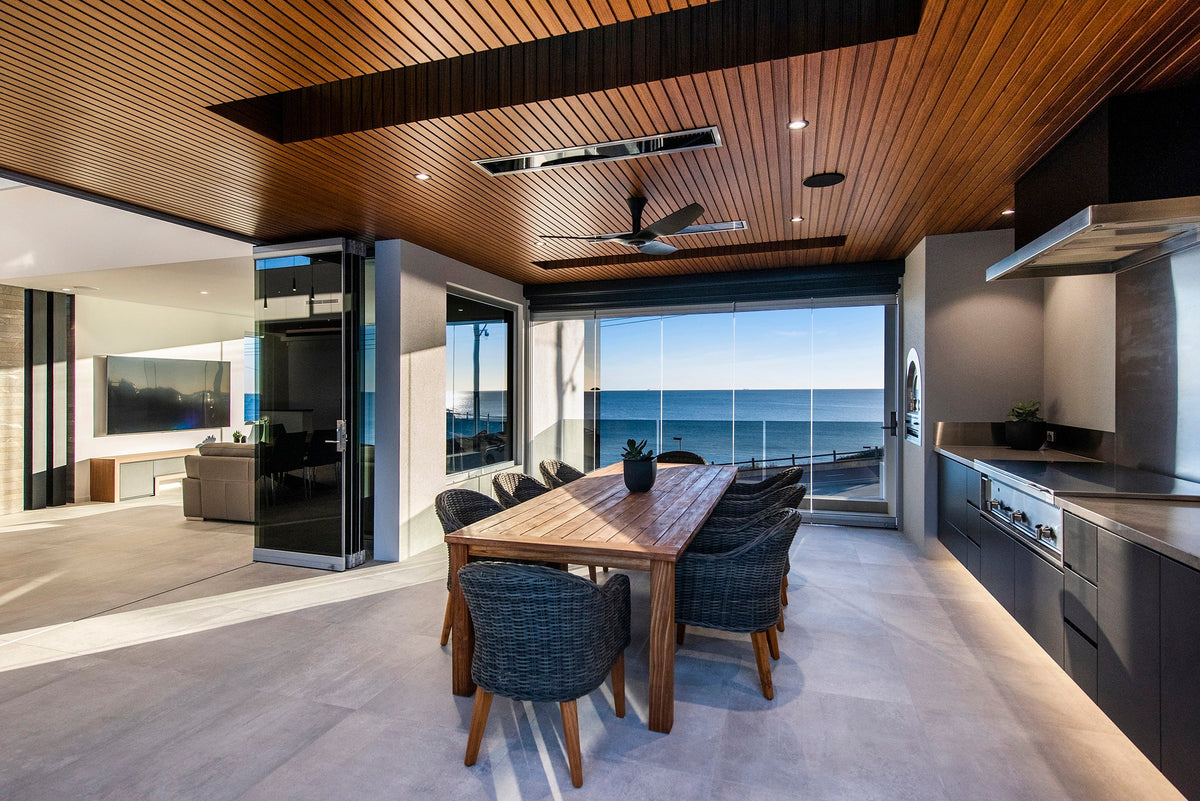

- Wall, ceiling or flush recessed mounting (recess kits sold separately)
- Compatible with Affinity On/Off, Affinity Dimmer and Manual Wall Switch controls (sold separately)
- 5-year warranty on land-based installations

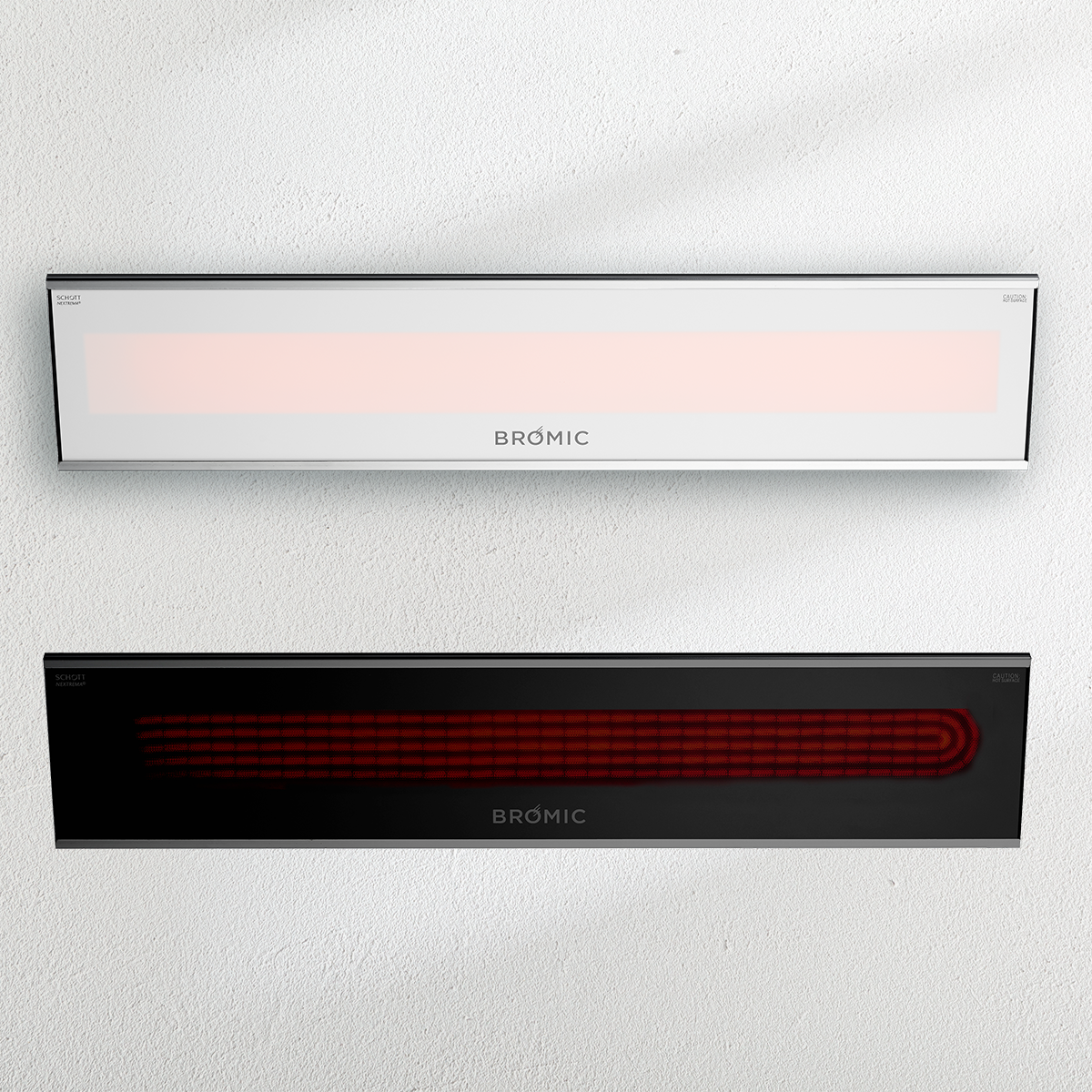

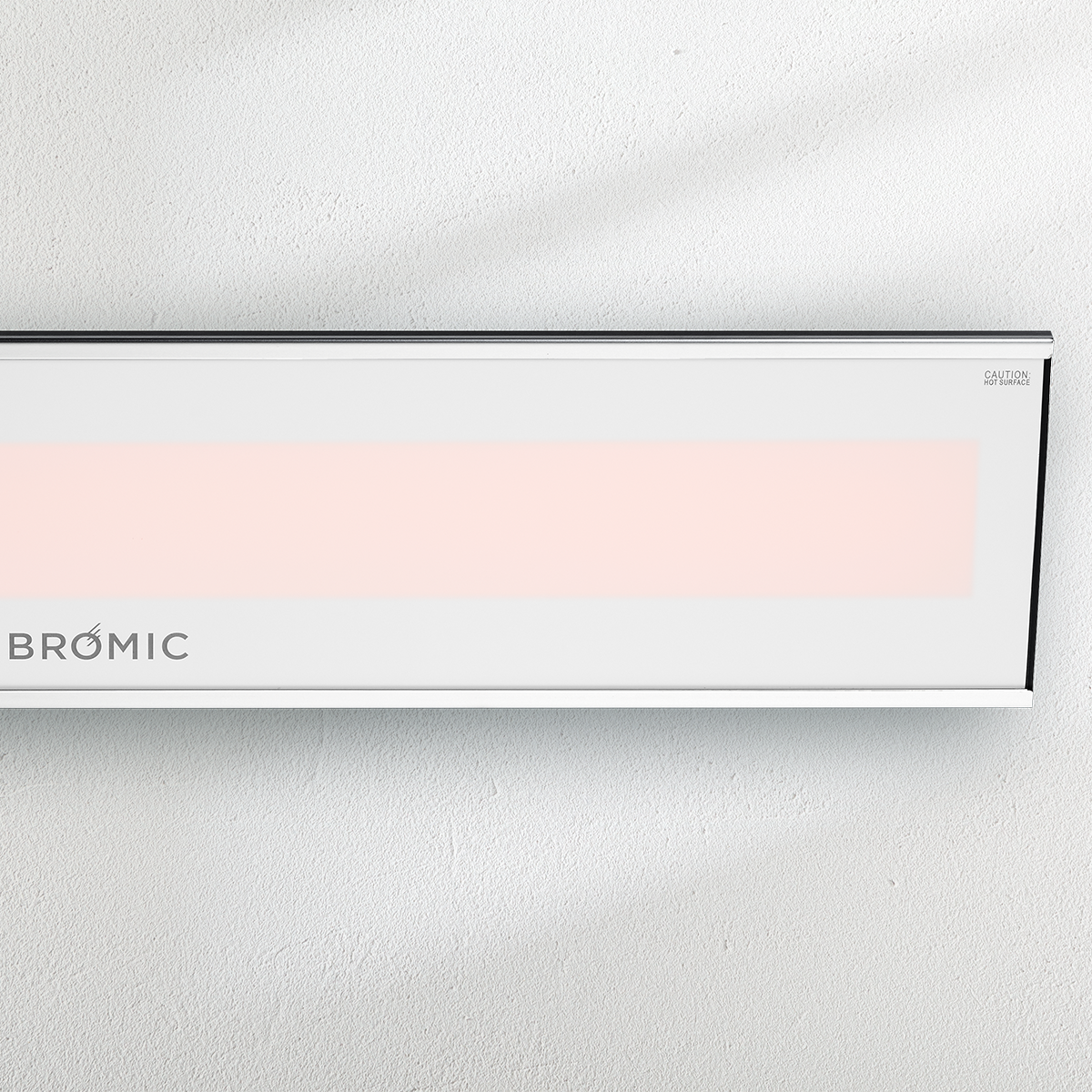

- Black or white; 240V or 208V
Specifications
Manufacturer Bromic Heating
Model Numbers (240V) Black: BH3622002
White: BH3622003
White: BH3622003
Model Numbers (208V) Black: BH3622006
White: BH3622007
White: BH3622007
Series Platinum Smart-Heat Electric Marine
Watts 4,500 (approx. 15,354 BTU)
Heating Elements Dual Element
Heat Area 143 Sq. Ft.
Rated Current 18.8A (220-240V) / 21.6A (208V)
Minimum Floor Clearance Wall 72" / Ceiling 96"
Style Wall / Ceiling / Flush Mount
Included Mounting Bracket, 8" Stainless Steel Pole
Construction AISI 316 Marine-Grade Stainless Steel
Ingress Rating IPX5
Marine Approval Lloyd's Register
Finish Black / White
Control Options Affinity On/Off / Affinity Dimmer / Manual Wall Switch (sold separately)
Warranty 5 Years (land-based) / 3 Years (marine vessels)
Dimensions
Width 53.2"
Height 10.1"
Depth 2.1"
Weight 33 lbs
