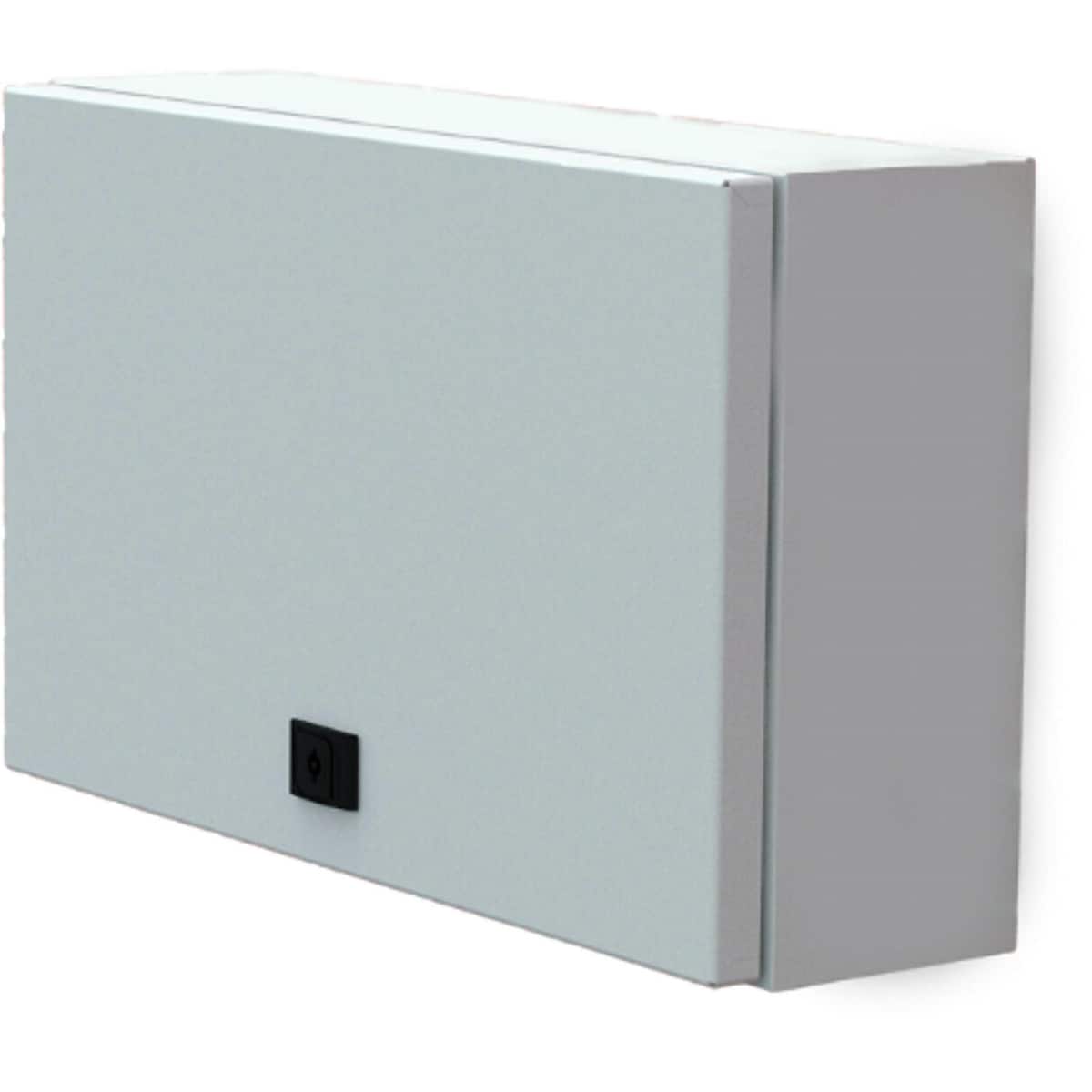

Bromic Affinity Smart-Heat On/Off Controller (5CH / 30kW)
Bromic Affinity Smart-Heat On/Off Controller (5CH / 30kW)
Regular price
$2,106.00 USD
Regular price
Sale price
$2,106.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Need help choosing? Call us
Reach out to usShare
Description
The Bromic Affinity Smart-Heat On/Off Controller (5 Channel) is built for large residential and commercial installations, switching five independent zones of Bromic Platinum or Tungsten heaters from the Bromic Heating app. It works with both electric and gas models.
App Control and Automation
Built-in 2.4GHz Wi-Fi and Bluetooth connect the controller to the Bromic Heating app, with timers, schedules, Amazon Alexa and Google Home compatibility, and multi-site management. The Expansion Board comes built in, adding Ethernet and 0-10V connections for home or building management systems.
Built-in 2.4GHz Wi-Fi and Bluetooth connect the controller to the Bromic Heating app, with timers, schedules, Amazon Alexa and Google Home compatibility, and multi-site management. The Expansion Board comes built in, adding Ethernet and 0-10V connections for home or building management systems.
Capacity
Each channel handles up to 6kW of electric heaters (30kW total) on a 3-phase supply: 120/208V, 220/380V, 230/400V, 240/415V or 277/480V. For gas, each channel switches up to 10 heaters.
Each channel handles up to 6kW of electric heaters (30kW total) on a 3-phase supply: 120/208V, 220/380V, 230/400V, 240/415V or 277/480V. For gas, each channel switches up to 10 heaters.
Installation
The IP54-rated enclosure ships with a key for access and is suitable for covered outdoor locations. A 3-phase supply is required, and installation must be completed by a licensed electrician.
The IP54-rated enclosure ships with a key for access and is suitable for covered outdoor locations. A 3-phase supply is required, and installation must be completed by a licensed electrician.
Features
- On/off control of Bromic Platinum and Tungsten heaters, electric or gas
- 5 independent channels: up to 6kW electric each (30kW total) or up to 10 gas heaters each
- Expansion Board built in for Ethernet and 0-10V BMS integration
- Wi-Fi and Bluetooth control via the Bromic Heating app
- Timers, schedules, and Amazon Alexa and Google Home compatibility
- IP54-rated lockable enclosure
Specifications
Manufacturer Bromic Heating
Model Number BH3130053
Channels 5
Max Electric Load 6kW per channel, 30kW total
Supply 3-Phase (120/208V to 277/480V)
Gas Heaters Up to 10 per channel
Compatible Heaters Platinum and Tungsten, electric and gas
Connectivity Wi-Fi (2.4GHz) / Bluetooth / Ethernet / 0-10V
Ingress Rating IP54
Operating Temperature -4°F to 86°F
Certification UL 60730-1 / CAN/CSA E60730-1
Dimensions 19.7" x 13.4" x 8.0"
Weight 24.3 lbs
Warranty 1 Year
