Designing Backyards

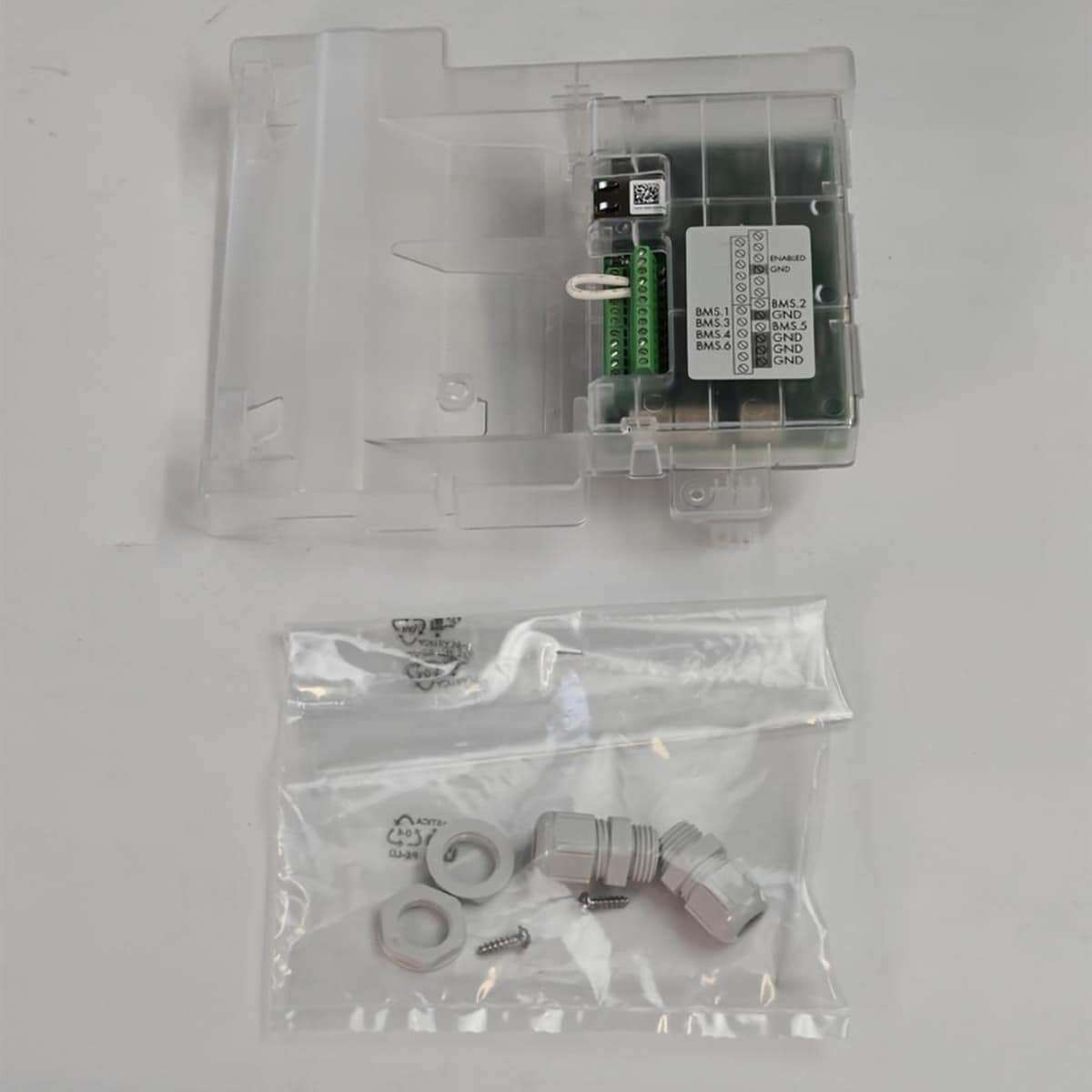

Bromic Affinity Smart-Heat Expansion Board (BMS/Ethernet)
Bromic Affinity Smart-Heat Expansion Board (BMS/Ethernet)
Regular price
$384.00 USD
Regular price
Sale price
$384.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Need help choosing? Call us
Reach out to usShare
Description
The Bromic Affinity Smart-Heat Expansion Board adds a wired Ethernet connection and 0-10V control inputs to a 1-channel or 2-channel Affinity On/Off or Dimmer Controller. Use it for a more reliable connection than Wi-Fi, or to run your heaters from a home automation or building management system (BMS).
Installation
The board fits directly inside the controller housing and secures with two screws. It is powered by the controller, so no separate power supply is needed. A jumper cable is included to switch on BMS mode; when BMS mode is active, control through the Bromic Heating app is disabled. The 5-channel Affinity controllers already include this board.
The board fits directly inside the controller housing and secures with two screws. It is powered by the controller, so no separate power supply is needed. A jumper cable is included to switch on BMS mode; when BMS mode is active, control through the Bromic Heating app is disabled. The 5-channel Affinity controllers already include this board.
Features
- Wired Ethernet connection for Affinity controllers
- 0-10V terminal block for home automation and BMS integration
- Fits inside the controller housing, powered by the controller
- Jumper cable included to enable BMS mode
- For 1-channel and 2-channel Affinity On/Off and Dimmer Controllers (built into 5-channel models)
Specifications
Manufacturer Bromic Heating
Model Number BH3130070
Connections Ethernet / 0-10V BMS
Compatible Controllers Affinity On/Off and Dimmer, 1CH and 2CH
Power Supplied by controller
