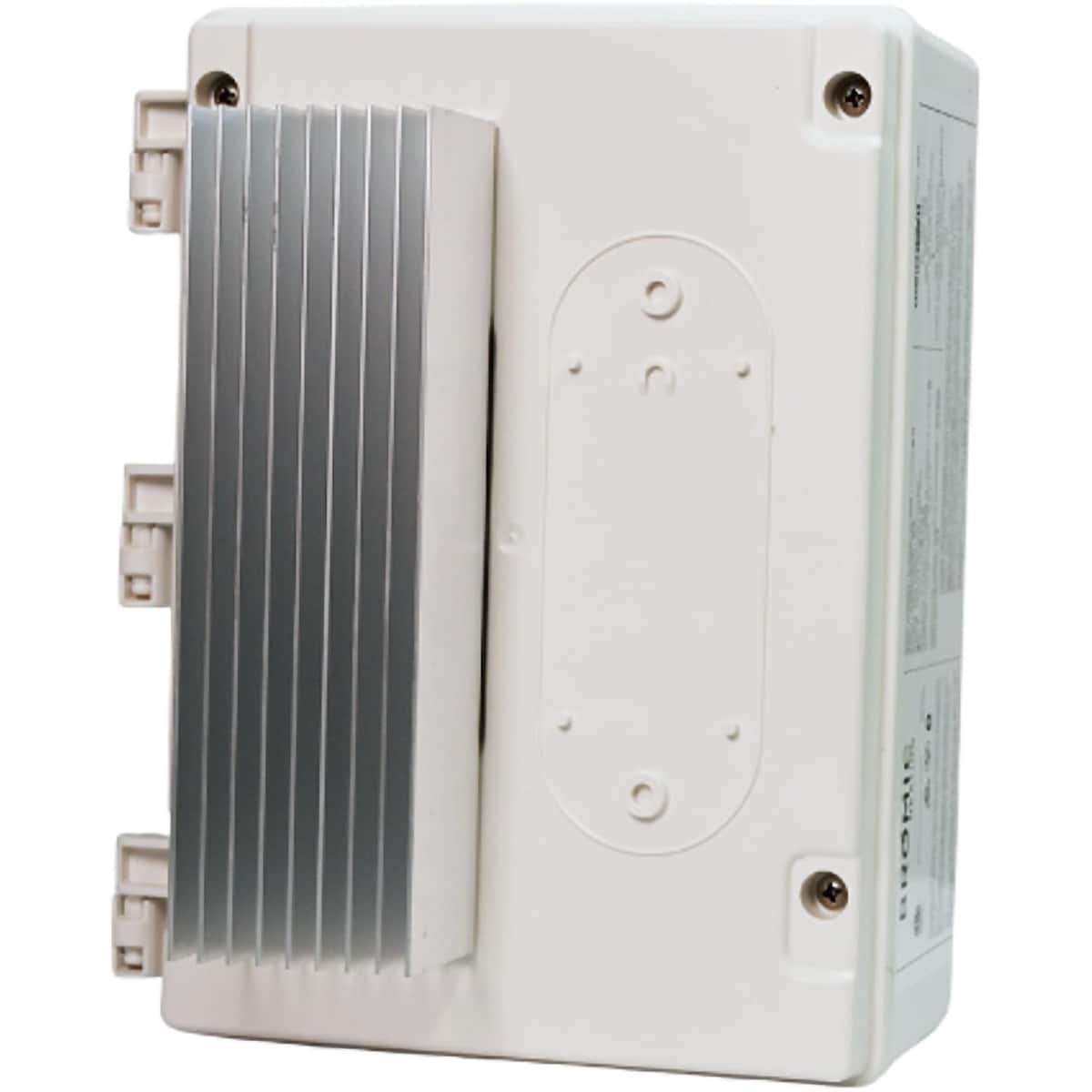

Bromic Affinity Smart-Heat Dimmer Controller (1CH / 6kW)
Bromic Affinity Smart-Heat Dimmer Controller (1CH / 6kW)
Regular price
$785.00 USD
Regular price
Sale price
$785.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Need help choosing? Call us
Reach out to usShare
Description
The Bromic Affinity Smart-Heat Dimmer Controller (1 Channel) lets you set exactly how much heat a zone of Bromic electric heaters puts out, in 1% steps from the Bromic Heating app. It works with Platinum Electric, Tungsten Electric and Cobalt Electric heaters. It is not compatible with gas heaters; for gas, use the Affinity On/Off Controller.
App Control
Built-in 2.4GHz Wi-Fi and Bluetooth connect the controller to the Bromic Heating app, with dimming, scenes, timers, schedules, Amazon Alexa and Google Home compatibility, and multi-site management. For a wired connection or building automation, add the Affinity Smart-Heat Expansion Board (BH3130070) for Ethernet and 0-10V BMS control.
Built-in 2.4GHz Wi-Fi and Bluetooth connect the controller to the Bromic Heating app, with dimming, scenes, timers, schedules, Amazon Alexa and Google Home compatibility, and multi-site management. For a wired connection or building automation, add the Affinity Smart-Heat Expansion Board (BH3130070) for Ethernet and 0-10V BMS control.
Capacity and Installation
The channel controls up to 6kW of electric heaters on a 208 to 277V circuit. The IP54-rated enclosure is suitable for covered outdoor locations, and installation must be completed by a licensed electrician.
The channel controls up to 6kW of electric heaters on a 208 to 277V circuit. The IP54-rated enclosure is suitable for covered outdoor locations, and installation must be completed by a licensed electrician.
Features
- Dim Bromic electric heaters in 1% increments
- 1 channel: up to 6kW (208 to 277V)
- Compatible with Platinum, Tungsten and Cobalt electric heaters (not gas)
- Wi-Fi and Bluetooth control via the Bromic Heating app
- Scenes, timers, schedules, and Amazon Alexa and Google Home compatibility
- Optional Expansion Board for Ethernet and 0-10V BMS integration
- IP54-rated enclosure
Specifications
Manufacturer Bromic Heating
Model Number BH3130061
Channels 1
Max Load 6kW
Voltage 208-277V
Dimming 1% Increments
Compatible Heaters Platinum, Tungsten and Cobalt Electric
Connectivity Wi-Fi (2.4GHz) / Bluetooth
Ingress Rating IP54
Operating Temperature -4°F to 86°F
Certification UL 60730-1 / CAN/CSA E60730-1
Dimensions 11.4" x 8.0" x 6.4"
Weight 3.5 lbs
Warranty 1 Year
